Poly Series
Azur Flexiduct
Flexible Air
Duct
*Please ask us for different types of product.

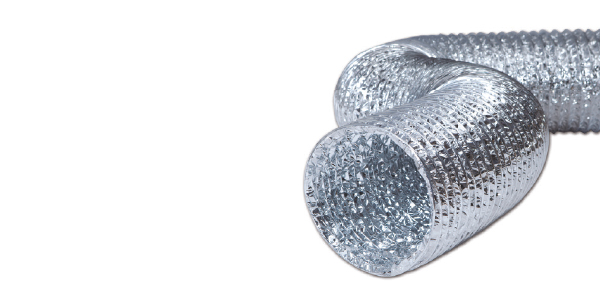

POLY BASIC
| Construction : | 4 Ply Metallized Polyester |
| Diameter Range : | Ø 76 – 560 |
| Service Temperature : | -30 °C / +80 °C |
| Operating Pressure : | 2000 Pa |
| Air Flow Velocity : | 30 m/s (max.) |
| Length : | 10 mt ± %2 |

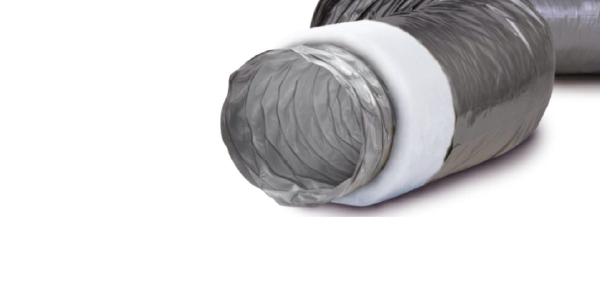

POLY TERMAL BASIC
| Construction : | 4 Ply Metallized Polyester |
| Diameter Range : | Ø 76 – 560 |
| Service Temperature : | -30 °C / +80 °C |
| Operating Pressure : | 2000 Pa |
| Air Flow Velocity : | 30 m/s (max.) |
| Length : | 10 mt ± %2 |
| Jacket Construction : | Polyester |
| Insulation : | 25 mm EUCEB Certified Low Emission Mineral Wool |
| Optional Jacket : | Scrim Reinforced Available Upon Request |

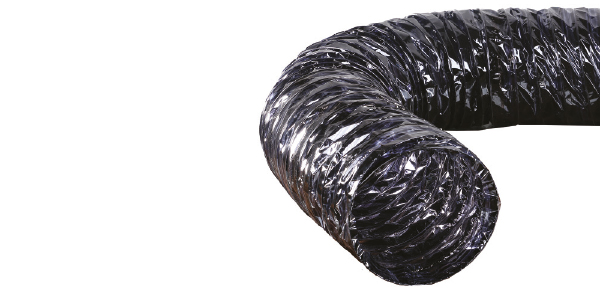

POLY BLACK
| Construction : | 2 Ply Black Polyester |
| Diameter Range : | Ø 76 – 560 |
| Service Temperature : | -30 °C / +80 °C |
| Operating Pressure : | 2000 Pa |
| Air Flow Velocity : | 30 m/s (max.) |
| Length : | 10 mt ± %2 |

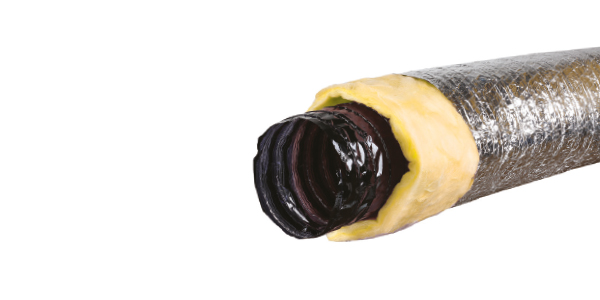

POLY THERMAL BLACK
| Construction : | 2 Ply Black Polyester |
| Diameter Range : | Ø 76 – 560 |
| Service Temperature : | -30 °C / +80 °C |
| Operating Pressure : | 2000 Pa |
| Air Flow Velocity : | 30 m/s (max.) |
| Length : | 10 mt ± %2 |
| Jacket Construction : | Polyester |
| Insulation : | 25 mm EUCEB Certified Low Emission Mineral Wool |
| Optional Jacket : | Scrim Reinforced Available Upon Request |
