Flexiduct

Flexiduct

Flexible Air
Duct

*Please ask us for different types of product.
http://www.azurinsulation.com/wp-content/uploads/2019/10/flexiductlogo.jpg

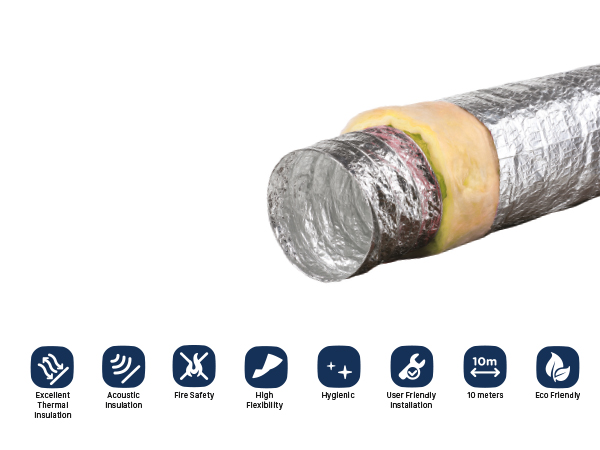

ALU THERMAL OPTIMA


Construction 2 Ply Aluminum, 1 Ply Polyester
Diameter Range Ø 76 – 560
Service Temperature -30 °C / +150 °C
Operating Pressure 3000 Pa
Reaction to Fire M1
Air Flow Velocity 30 m/s (max.)
Length 10 mt ± %2
Jacket Construction Aluminium + Polyester
Insulation 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2019/10/Aluthermaoptima.jpg

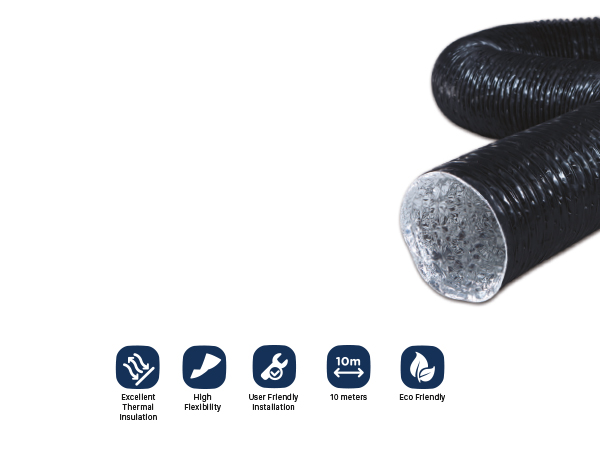

COMBI


Construction 3 Ply Aluminium, 2 Ply Polyester, 1 Ply PVC
Diameter Range Ø 76 – 560
Service Temperature -30 °C / +150 °C
Operating Pressure 3000 Pa
Reaction to Fire Classe 2 (Due) Lapi Certificate
Air Flow Velocity 30 m/s (max.)
Length 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2019/10/combi.jpg

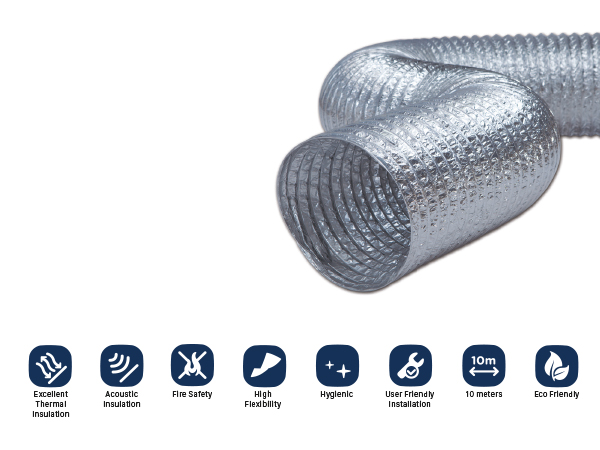

ALU OPTIMA


Construction 2 Ply Aluminum, 1 Ply Polyester
Diameter Range Ø 76 – 560
Service Temperature -30 °C / +150 °C
Operating Pressure 3000 Pa
Reaction to Fire M1
Air Flow Velocity 30 m/s (max.)
Length 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2019/10/aluoptima.jpg

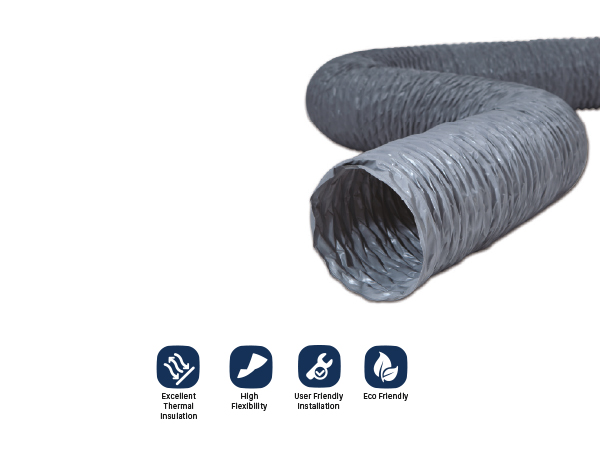

PVC M


Construction 1 Ply 220 Micron PVC Coated Mesh Fabric
Diameter Range Ø 76 – 560
Service Temperature -30 °C / +70 °C
Operating Pressure 3000 Pa
Air Flow Velocity 30 m/s (max.)
Length 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2019/10/PVCM.jpg
