PVC Series

FlexiDuct

Flexible Air
Duct

*Please ask us for different types of product.
http://www.azurinsulation.com/wp-content/uploads/2019/10/flexiductlogo.jpg

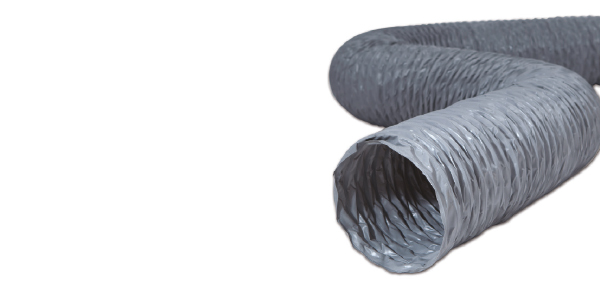

PVC M

Construction : 1 Ply 220 Micron PVC Coated Mesh Fabric
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +70 °C
Operating Pressure : 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt  ± %2
http://www.azurinsulation.com/wp-content/uploads/2020/02/PVC_M.jpg

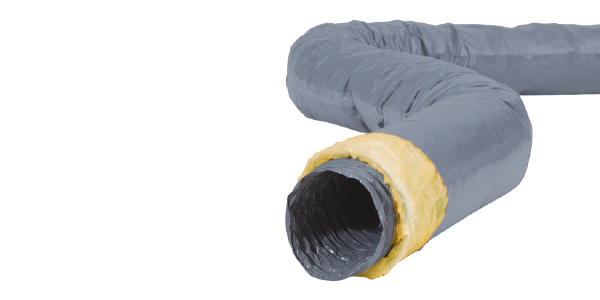

PVC THERMAL M

Construction : 1 Ply 220 Micron PVC Coated Mesh Fabric
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +70 °C
Operating Pressure : 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt  ± %2
Jacket Construction : 1 Ply Polyethylene
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
http://www.azurinsulation.com/wp-content/uploads/2020/02/PVCTHERMAL_M.jpg

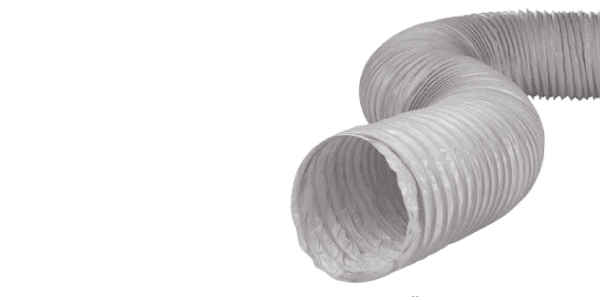

PVC BASIC

Construction : 1 Ply 120 Micron PVC
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +70 °C
Operating Pressure : 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt  ± %2
http://www.azurinsulation.com/wp-content/uploads/2020/02/PVC_BASIC.jpg

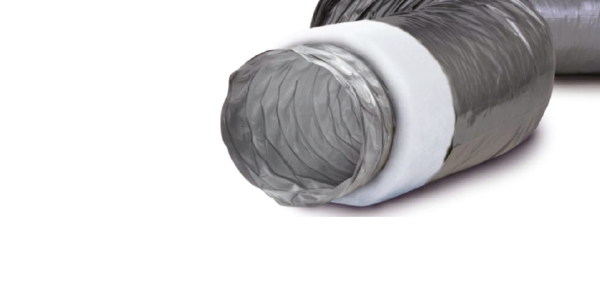

PVC THERMAL BASIC

Construction : 1 Ply 120 Micron PVC
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +70 °C
Operating Pressure : 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt  ± %2
Jacket Construction : 1 Ply Polyethylene
Insulation : 25 mm White Polyester
http://www.azurinsulation.com/wp-content/uploads/2020/02/PVCTHERMAL_BASIC.jpg
