ALU Series

FlexiDuct

Flexible Air
Duct

*Please ask us for different types of product.
http://www.azurinsulation.com/wp-content/uploads/2019/10/flexiductlogo.jpg

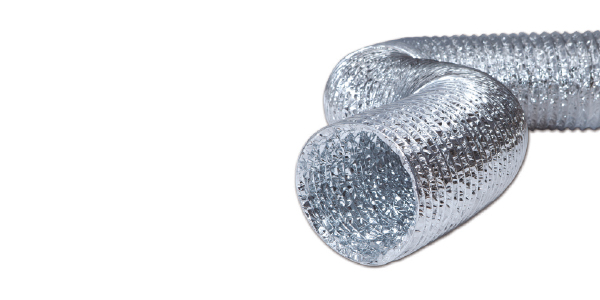

ALU BASIC

Construction :

1 Ply Aluminium, 2 Ply Metallized Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 2500 Pa
Reaction to Fire : CLASSE 1 (LAPI)
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2020/02/alubasic.jpg

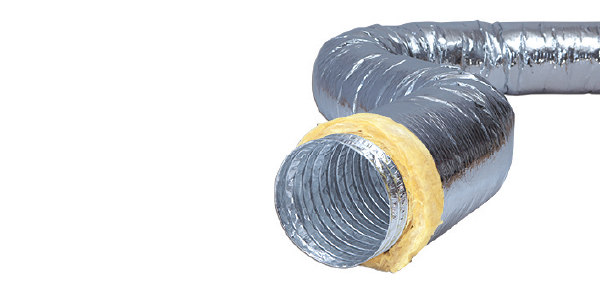

ALU THERMAL BASIC

Construction : 1 Ply Aluminium, 2 Ply Metallized Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 2500 Pa
Reaction to Fire : CLASSE 1 (LAPI)
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium, + Polyester
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluthermalbasic.jpg

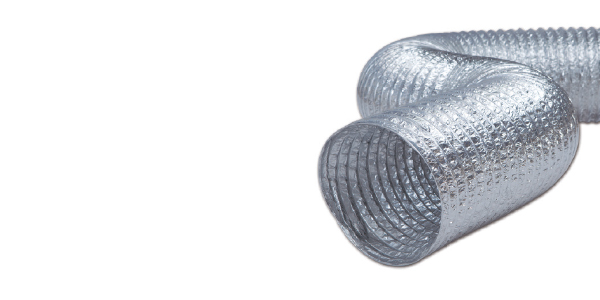

ALU OPTIMA

Construction : 2 Ply Aluminum, 1 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 3000 Pa
Reaction to Fire : M1
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluoptıma.jpg

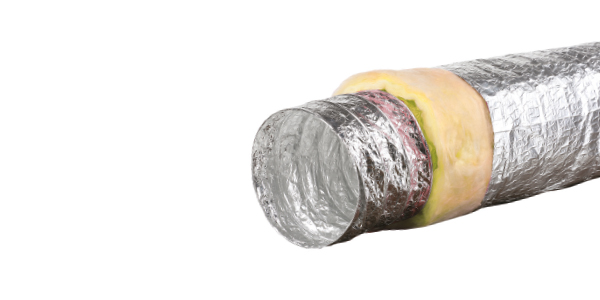

ALU THERMAL OPTIMA

Construction : 2 Ply Aluminum, 1 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 3000 Pa
Reaction to Fire : M1 + M1 (Plus)
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluthermaoptıma.jpg

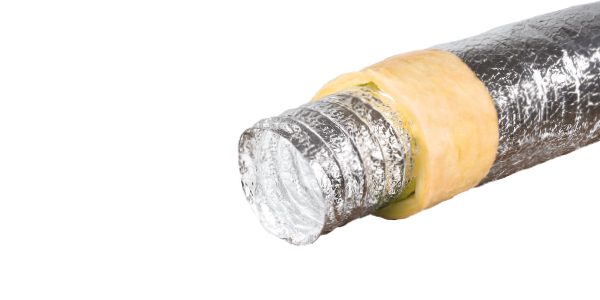

ALU SOUND OPTIMA

Construction : 2 Ply Aluminium, 1 Ply Polyester Perforated Duct for Sound Absorption
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 3000 Pa
Reaction to Fire : M1 + M1 (Plus)
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/alusonutoptima.jpg

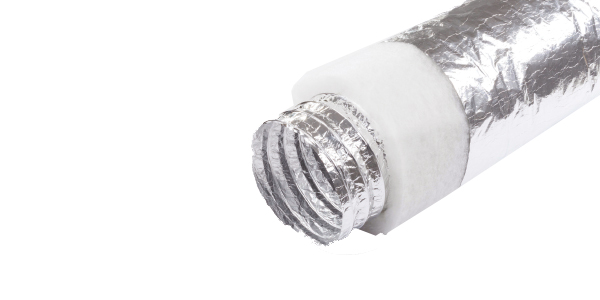

ALU THERMAL OPTIMA-WHITE

Construction : 2 Ply Aluminum, 1 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 3000 Pa
Reaction to Fire : M1 + M1 (Plus)
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm White Polyester
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluthermaoptımaWHITE.jpg


ALU SOUND OPTIMA-WHITE

Construction : 2 Ply Aluminium, 1 Ply Polyester Perforated Duct for Sound Absorption
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : 3000 Pa
Reaction to Fire : M1 + M1 (Plus)
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm White Polyester
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/alusonutoptima.jpg

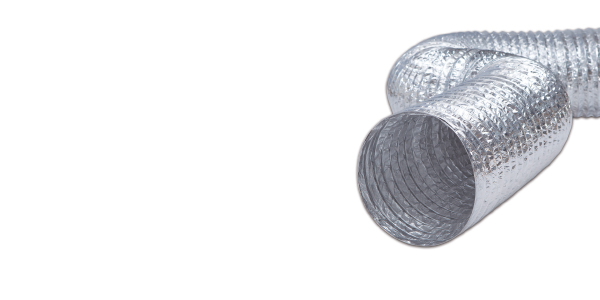

ALU PREMIUM F

Construction : 3 Ply Aluminium, 2 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +250 °C
Reaction to Fire : M0
Operating Pressure : 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluPremiumF.jpg

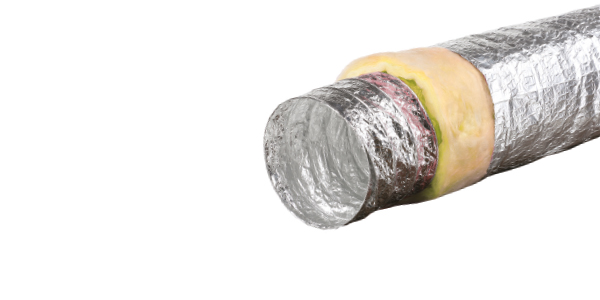

ALU THERMAL PREMIUM F

Construction : 3 Ply Aluminium, 2 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +250 °C
Operating Pressure : 3000 Pa
Reaction to Fire : M0+M1
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluthermalPREMIUMF.jpg


ALU SOUND PREMIUM F

Construction : 3 Ply Aluminium,2 Ply Polyester Perforated Duct for Sound Absorption
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +250 °C
Operating Pressure : 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluthermalPREMIUMF.jpg
