ALU Hygiene Series

Flexiduct

Flexible Air
Duct

*Please ask us for different types of product.
http://www.azurinsulation.com/wp-content/uploads/2019/10/flexiductlogo.jpg

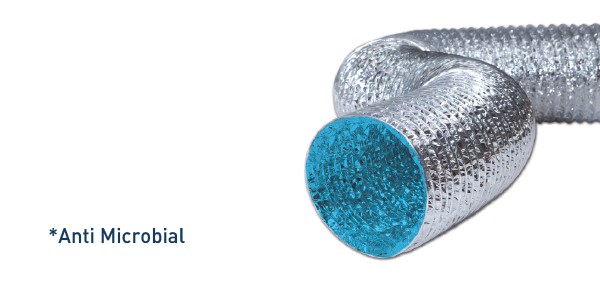

ALU HYGIENE

Construction : 2 Ply Aluminium, 1 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : Max 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluhygine.jpg

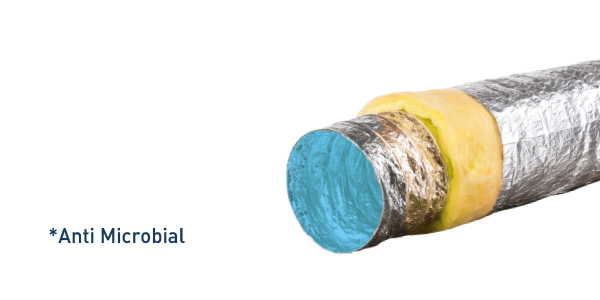

ALU THERMAL HYGIENE

Construction : 2 Ply Aluminium, 1 Ply Polyester
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : Max 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Jacket Construction : Aluminium + Polyester
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluTHERMALhygine.jpg

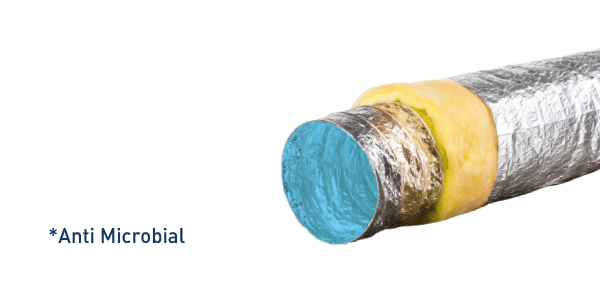

ALU SOUND HYGIENE

Construction : 2 Ply Aluminium, 1 Ply Polyester Perforated Duct for Sound
Diameter Range : Ø 76 – 560
Service Temperature : -30 °C / +150 °C
Operating Pressure : Max 3000 Pa
Air Flow Velocity : 30 m/s (max.)
Length : 10 mt ± %2
Jacket Construction : Aluminium + Polyester
Insulation : 25 mm EUCEB Certified Low Emission Mineral Wool
Optional Jacket : Scrim Reinforced Available Upon Request
http://www.azurinsulation.com/wp-content/uploads/2020/02/aluSOUNDhygine.jpg
